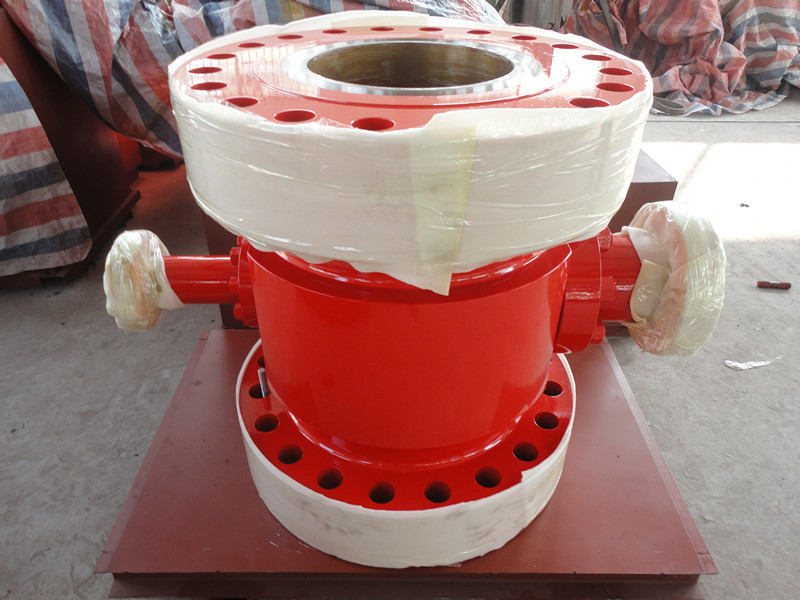

    API 16A Drilling Spool For Oil Well Drilling Operation 13 5 / 8" X 11" - 3 K

    Ask Lasest Price
    Brand Name : JC Wellhead
    Model Number : 13 5 / 8" x 11" Drilling Spool
    Certification : API 16A
    Price : Negotiable
    Payment Terms : T/T, L/C, D/P
    Supply Ability : 300 sets / month
    Delivery Time : 20-45 days
    • Product Details
    • Company Profile

    API 16A Drilling Spool For Oil Well Drilling Operation 13 5 / 8" X 11" - 3 K


    API 16A Drilling Spool For Oil Well Drilling Operation 13 5 / 8" x 11" - 3 K


    The 13-5/8"- 3 K X 11" - 3 K Drilling spool can be applied to drilling high pressure oil and gas well, the connecting of the by passage of the spool with the valves and pipes will play not only a role of blowout and choking , but also a role of connecting the BOP with the wellhead.

    The 13-5/8"- 3 K X 11" - 3 K Drilling spool is used to connect with the BOP and the casing head for oilfield drilling opeation.The 13-5/8"- 3 K X 11" - 3 K Drilling spool is made of alloy steel and heat-treated and used on the oil and gas well which is with a pressure of less than 105Mpa. It is tested according to (SY/T5053.1-2000 BOP and control equipment, BOP) before shipping to be used safely.


    Specification of 13 5/8" Drilling Spool


    Drilling Spool35-2135-3535-7035-105
    Nominal Diameter (mm)Φ346Φ346Φ346Φ346
    Working Pressure (Mpa/psi)21/3,00035/5,00070/10,000105/15,000
    Bypass Diameter (mm)/Φ103Φ103/Φ78Φ103/Φ78
    Top and Bottom Connection Flange/API 6B 35-35 R46API 6BX 35-70 BX156API 6BX 35-105 BX156
    Side Connection Flange/API 6B 103-35 R39API 6BX 103-70 BX155 (Φ103)API 6BX 103-105 BX155 (Φ103)
    /API 6BX 78-70 BX155 (Φ78)API 6BX 78-105 BX155 (Φ78)
    Applicable Temperature (℃)-29~+12129~+12129~+121-29~+121

    API 16A Drilling Spool For Oil Well Drilling Operation 13 5 / 8" X 11" - 3 K



    About JC Wellhead


    Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.


    YCJC will constantly insist on the innovation of products, technologies and system and strive for providing the excellent products and services for our customers. We are sincerely welcome you to work together.


    The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub
