    Durable Oil Drilling Spool Adapter Flange , 15000 Psi High Pressure Flange

    Ask Lasest Price
    Brand Name : JC Wellhead
    Model Number : 3-1/16"-15,000 psi BX-154 X 2-1/16"-15,000 psi
    Certification : API 6A
    Price : Negotiable
    Payment Terms : T/T, L/C, D/P
    Supply Ability : 300 sets / month
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

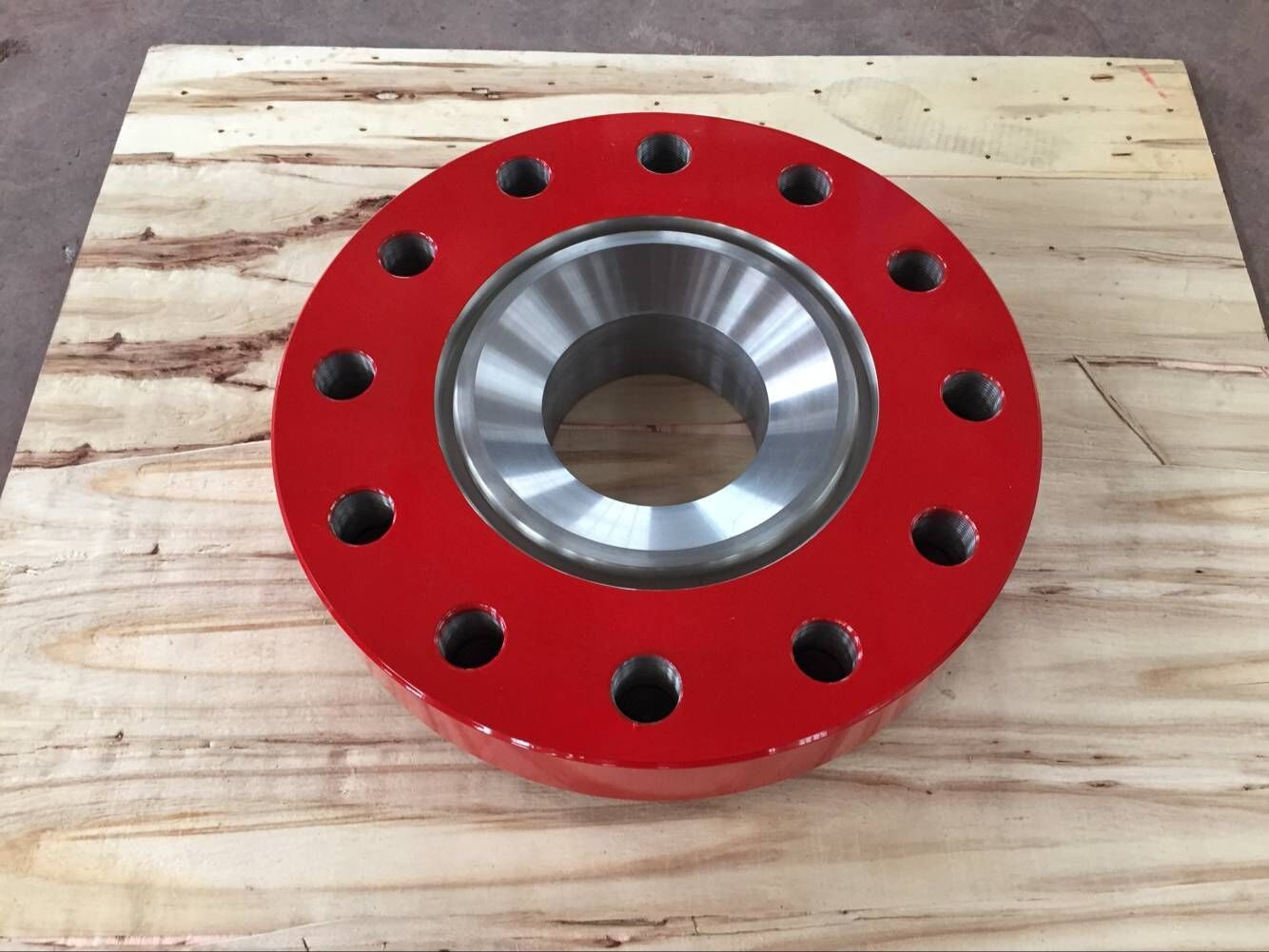

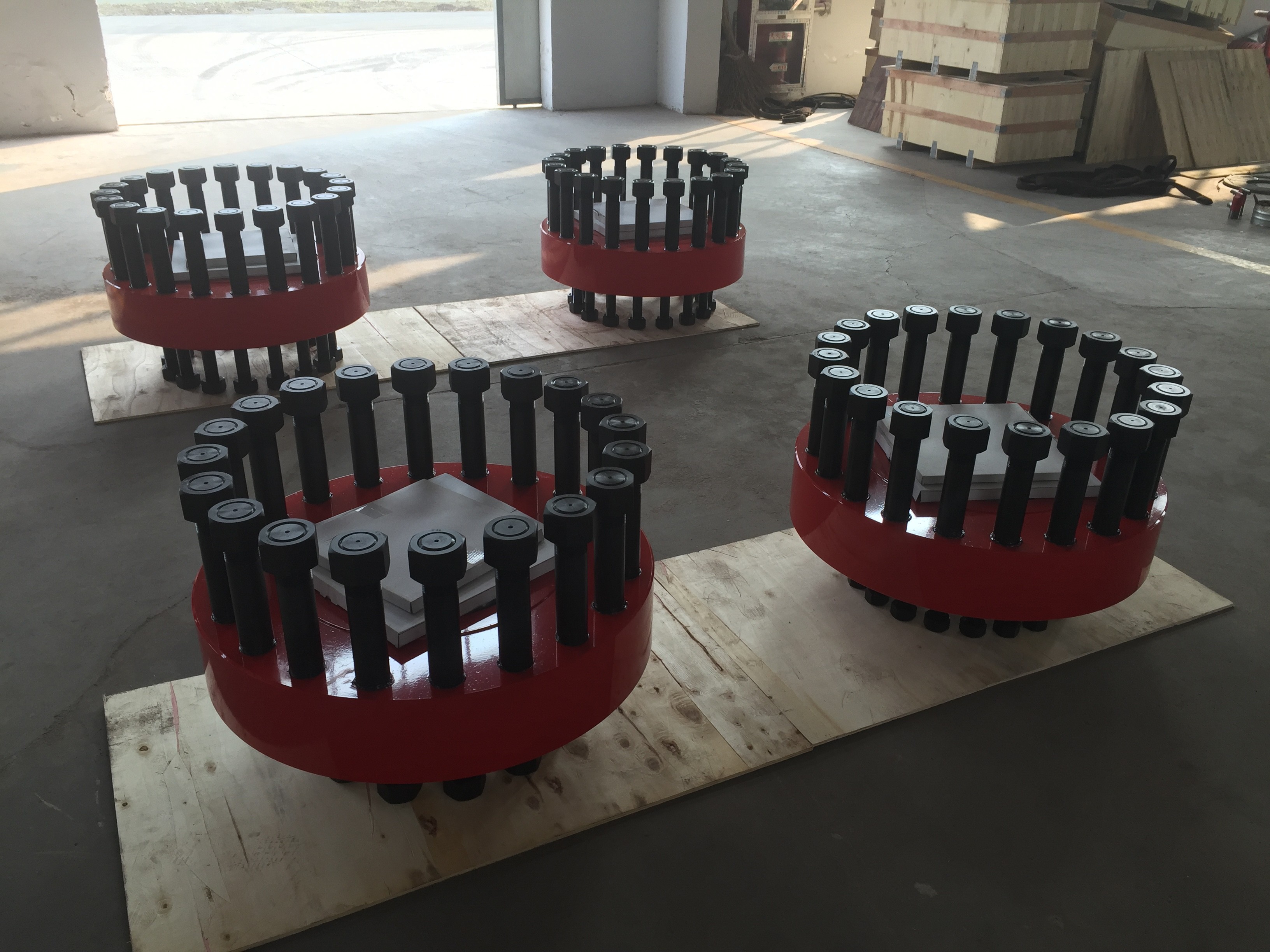

    Durable Oil Drilling Spool Adapter Flange , 15000 Psi High Pressure Flange

    API 6A Double Studded Adapter Flange 15000 Psi High Pressure Wellhead Adapter Flange


    The double studded adapter is manufactured according to API 6A Specification. The specification and pressure rating for both ends will be different, which is depended on hook of drilling well control equipment. DSAF provide the connection for two different pieces of wellhead equipment with different size and pressure ratings where there is a restriction of space.


    Features of API 6A DSAF


    * DSAF are designed with any combination of sizes and pressure ratings

    * The thicknesses of the DSAF will be according to the customer's requirements.

    * DSAF are provided completely with tap-end studs and nuts

    * The DSAF is made of intergal forging alloy steel, available for standard service and sour service

    * Available with Stainless Steel 316L corrosion resistant ring grooves


    Ordered Specification of the double studded adapter flange


    Description of DSAF

    QtyUnit

    DSAF : 11"-15,000 psi BX-158 X 7-1/16"-15,000 psi BX-156 , Material Class-DDNL , PSL-2 , Temp. Class-U , Ring groove SS316 inlay , complete with API rings , required studs & Nuts. DSAF to be manufactured & tested in accordance with API Spec.6A


    1


    set

    DSAF : 3-1/16"-15,000 psi BX-154 X 2-1/16"-15,000 psi BX-152 , Material Class-DDNL , PSL-2 , Temp. Class-U , Ring groove S316 inlay , complete with API rings , required studs & Nuts. DSAF to be manufactured & tested in accordance with API Spec.6A


    1


    Set

    DSA - 21-1/4" x 5000 psi , BX-165 X 18-3/4"X 10,000psi , BX-164 Material Class-AA , PSL-2 , Temp. Class-T , Ring groove SS316 inlay , complete with API Rings , required studs & Nuts. DSA to be manufactured & tested in accordance with API Spec.6A latest edition


    1


    set


    Durable Oil Drilling Spool Adapter Flange , 15000 Psi High Pressure Flange Durable Oil Drilling Spool Adapter Flange , 15000 Psi High Pressure Flange

    About JC Wellhead


    Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.


    JC Petroleum Equipment Factory manufactures and supplier the various wellhead equipment and related parts to meet different requirement in oilfield service operation. The wellhead equipment are conformed with API 6A and wellhead choke manifold is according to API16C specification, and applied for high pressure and high temperature working condition.


    The wellhead manifold include choke and kill manifold, fracturing manifold, testing manifold, drilling floor manifold etc.The wellhead equipment covers the wellhead valves such as gate valve, mud valve, choke valve, check valve, and wellhead connection equipment including spacer spool, double studded adapter flange, various adapter flange, drilling spool, cross, tee etc.


    JC Wellhead 's advantage:


    * Excellent and stable quality of the products conformed with API and ISO standard

    * Strict quality control on raw material and machining, we can arrange the SGS or BV to witness the test

    * We supply various wellhead products to meet the customers' operation.

    * Timely delivery, professional service on export procedure,

    * Product guarantee and best after-sales service.
