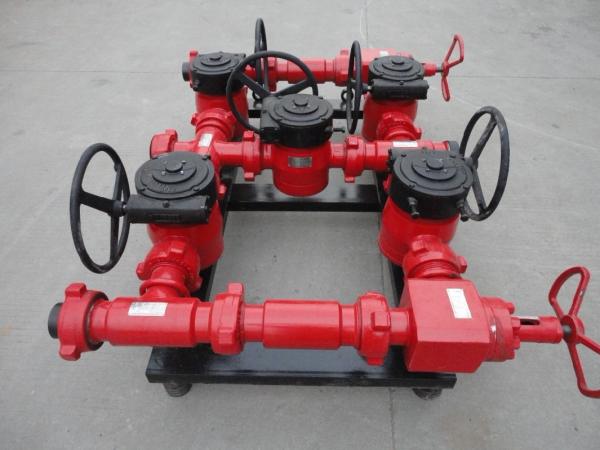

    High Pressure Hydraulic Choke Manifold Oil And Gas Drilling Equipment 3 1 / 8" X 5000 Psi

    Ask Lasest Price
    Brand Name : JC Wellhead
    Model Number : 3 1/8" Choke and Kill manifold
    Certification : API 16C
    Price : Negotiable
    Payment Terms : T/T, L/C, D/P
    Supply Ability : 100 sets / month
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

    High Pressure Hydraulic Choke Manifold Oil And Gas Drilling Equipment 3 1 / 8" X 5000 Psi

    Wellhead Manifold API 16C 3 1 / 8" x 5000 psi Choke manfiold


    The chock manifold is the important well control equipment for down-hole operation to carry out near balance drilling. During drilling, the choke manifold are able to keep reservoirs form pollution and control well blowout efficiently. The design and the manufacture of the choke manifolds conform to API 6A and 16C standards. Various types of manifolds are available at customers' option.


    Components of choke manifold in details as following:


    1

    Drilling choke W/manual operator 3 1/8" *5000 psi

    Inlet and outlet flanges 3 1/8" *5000 psi

    Temperature class P+U

    Material class DD-, PSL3, Qty (2)

    2

    Drilling choke W/HYD operator and pneumatic position indicator 3 1/8" -5000 psi API flange inlet or outlet API 6A

    Temperature class P+U

    Material class DD-, PSL3, PR2, Qty (1)

    3

    Gate valve manual 3 1/8" bore 5000 psi 3 1/8" API flange *flange API 6A

    Temperature class P+U

    Material class DD-, PSL3, PR2 Qty (21)

    4

    Gate valve manual size 2 1/6" *1000 psi 2 1/16" API flange *flange API6A

    Temperature class P+U

    Materials class DD-, PSL3, PR2 Qty (02)

    5

    Cross special all studded 3 1/8" *5000 psi

    One 2 1/6" *10000 psi one top with fixation screws

    API 6A/15010423, PSL3

    Temperature class P+U

    Material class DD-, Qty (1)

    6

    Tec 3 1/8" API – 5000 *3 1/8" API-5000 *3 1/8 API 5000 (All Studded) Temperature class P+U

    Material class DD-, PSL3 Qty (02)

    7

    § Transmitter 0-5000 with 3 1/8" 5000 flange body

    Temperature class P+U

    Material class DD-, PSL3 Qty (1)

    8

    § Pressure gage 0-5000 psi on 3 1/8" *5000 psi flange

    Temperature class P+U

    Material class DD-, PSL3 Qty (one)

    9

    Assy tec stdd 3 1/8" *3 1/8" *3 1/8 -5000 psi

    Temperature class P+U

    Material class DD-, PSL3, API 6 Qty (one)

    10

    § Spool spacer 3 1/8" *5000 psi, different size

    Temperature class P+U

    Material class DD-, PSL3, Material API 4130 Qty(03)

    11Buffer Tank all studded 3 1/8*5000 psi Qty (one)
    12Assy skid for splitable lifting/shipping
    13Stud: 1 1/8" -8" *7 3/4" STL A 193 GR B7/ANSI B16-5 ZN PLTD, YCL Chromate, Qty (156)
    14Nut: HVY-HEX, 1 1/8" -8" STL/ZN PLTD YCL Chromate ANSI B16.2/A 144 GR ZH, ASM, B633CL 5, QTY(312)
    15Ring Gasket: Low carbon plated / API 6A PSL4, API monogram, Qty (52)

    Drilling choke control panel Hyd Choke Operator w/ steel open from cons 0-5000 stand pipe (2) choke manifold gage 6" face, 4 display digital pump strock counter for 2pump operator

    - Hose assy air supply

    - Hose assy HYP operator


    High Pressure Hydraulic Choke Manifold Oil And Gas Drilling Equipment 3 1 / 8" X 5000 Psi



    About JC Wellhead


    Yancheng Jingcheng Petroluem Machinery Manufacturing hereafter JC Wellhead, is the manufacture and supplier of the various wellhead equipment including wellhead manifold, wellhead Christams tree, wellhead valves, wellhead adapter flanges, casing head assy., tubing head assy, related parts to meet different requirement in oilfield service operation. The wellhead manifolds are conformed with API 6A and API16C specification, and applied for high pressure and high temperature working condition. The wellhead manifold include choke and kill manifold, fracturing manifold, testing manifold,drilling floor manifold, drilling fluid manifold etc.


    YCJC's advantage:


    * Excellent and stable quality of the products conformed with API and ISO standard

    * Strict quality control on raw material and machining, we can arrange the SGS or BV to witness the test

    * We supply various wellhead products to meet the customers' operation.

    * Timely delivery, professional service on export procedure,

    * Product guarantee and best after-sales service.


    Welcome to contact us for more information!
