    W Type Oilfield Wellhead Casing Hanger For Supporting The Casing String

    Ask Lasest Price
    Brand Name : JC Wellhead
    Model Number : Slip Casing Hanger
    Certification : API 6A
    Price : Negotiable
    Payment Terms : T/T, L/C, D/P
    Supply Ability : 100 sets / month
    Delivery Time : 30-45 days
    • Product Details
    • Company Profile

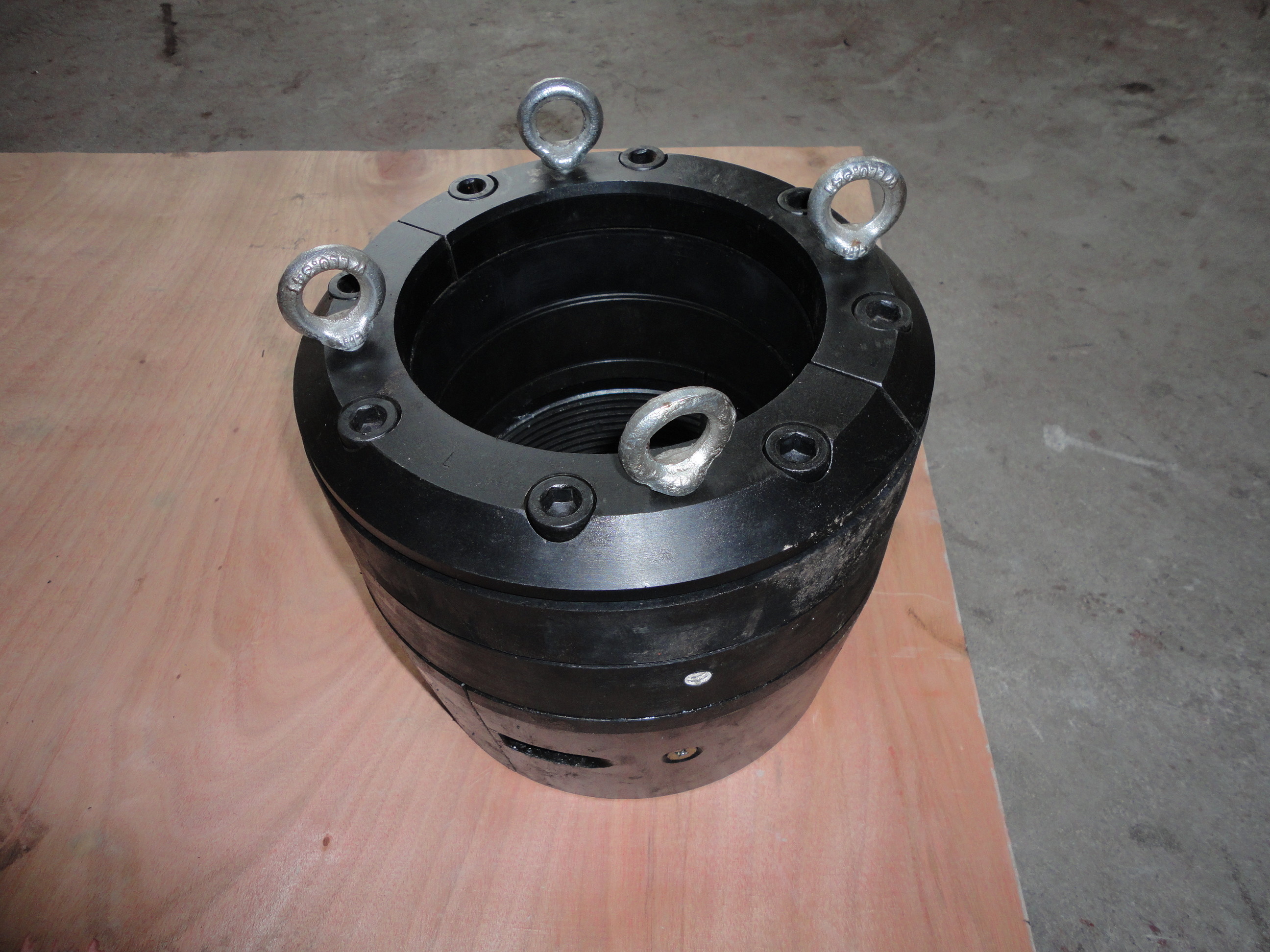

    W Type Oilfield Wellhead Casing Hanger For Supporting The Casing String


    Oilfield Wellhead Casing Hanger for API 6A Wellead Casing Head


    Casing hanger is a assembly conformed with API 6A specification, which can supports the casing string when it is used in the wellhead. The casing hanger can assure the casing string is correctly located and generally incorporates a sealing device or system to isolate the casing annulus from upper wellhead components


    Type of the casing hanger


    W Type Hanger The seal part is HSN. The slip bowl, slip and support base are made of API 6A low alloy steel. Packing off is automatically energized by the casing weight. With reasonable design of slip, the casing hanger has large load capacity. It is applicable to all casing heads and spools.

    - WD Type Casing Hanger WD type casing hanger is applied to connect casing head and surface casing and make the slip hold casing tightly with the help of external force. It is easy to install and operate. It can connect with 20˝ , 13-3/8˝ and 9-5/8˝ surface casings.

    - Mandrel Type Casing Hanger Mandrel type casing hanger is designed to meet different requirements of customers, which is mainly consisted of hanger body, rubber seal ring and retainer. It is applied with in the casing head and spool. With reliable seal performance, it is easy to install and operate.


    Specification of Casing hanger


    OD of casing hanger
    ID of casing hanger
    Minimum triggering seal weight (KG) of casing
    11"
    4 1/2"
    35,108
    11"
    5"
    33,430
    11"
    5 1/2"
    31,570
    11"
    7"
    24,970
    11"
    7 5/8"
    21,750
    13 5/8"
    7"
    47,786
    13 5/8"
    7 5/8"
    44,565
    13 5/8"
    8 5/8"
    38,828
    13 5/8"
    9 5/8"
    32,386
    16 3/4"
    9 5/8"
    65,975
    16 3/4"
    10 3/4"
    57,878
    16 3/4"
    11 3/4"
    49,941
    16 3/4"
    11 7/8"
    48,897
    20"
    13 3/8"
    103,419
    20"
    16"
    54,204

    W Type Oilfield Wellhead Casing Hanger For Supporting The Casing String



    About JC Wellhead


    Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.


    YCJC also engaged in abroad marketing, through these years of efforts, our wellhead equipment is exported to many countries, such as Thailand, UAE, Iran, Brazil, Argentina, USA etc. and enjoyed good reputation from the customers.


    With profession engineers we also offer the R&D service to the clients who have special requirements in the oilfield drilling operation and production operation.The wellhead equipment we manufacture and supply include casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, X-mas tree, VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, spacer spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub and wellhead manifolds.

    Welcome to contact us for more information!
